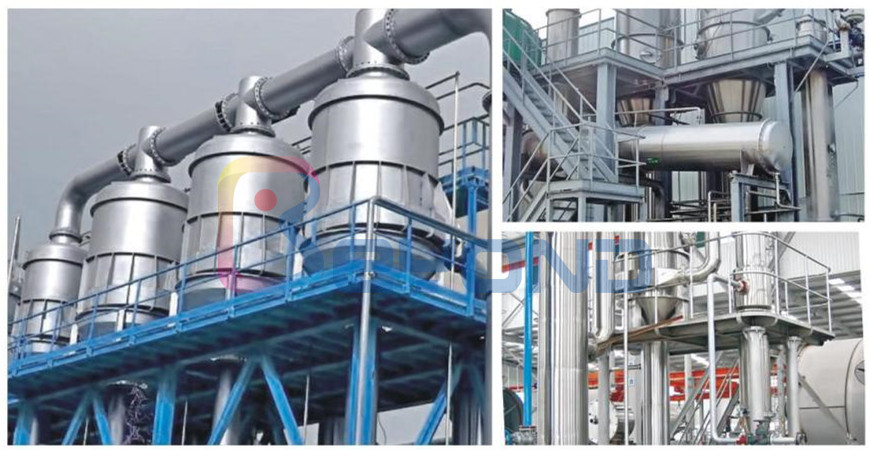

强制循环蒸发器 FORCED CIRCULATION EVAPORATOR
适用范围：
强制循环式单效、双效、三效及多效蒸发器，适用于高浓缩、高粘度，含不溶性固形物等食品、制药、化工、生物工程、环保工程、废液回收等行业进行低温浓缩。
系统组成：
各效加热器、各效分离器、冷凝器、循环泵、效间泵、真空及排水系统、分汽缸、操作平台、电器仪表控制柜及阀门、管路等系统组成。
性能特点：
1、全套系统设计合理美观、运行稳定、高效节能，蒸汽耗量低；
金彩汇2、浓缩比大，强制循环式，使粘度较大的料液容易流动蒸发，浓缩时间短；
3、特殊设计经简单操作可实现切换改效，以适应不同产品的生产；
金彩汇4、蒸发温度低，热量得到充分利用，料液受热温和，适用于热敏性物料的浓缩；
5、蒸发器通过强制循环，在管内受热均匀，传热系数高，可防止“干壁”现象；
6、料液进入分离器再分离，强化了分离效果，使整体设备具有较大的操作弹性；
金彩汇7、整套设备结构紧凑，占地面积小，布局简单流畅，代表了大型成套蒸发设备的发展方向；
8、连续进出料，料液液位与所需浓度可实现自控；
9、蒸发量：根据客户需要设计。
Scope Of Application：
Forced circulation type of single, double, three effect and multi-effect evaporator, suitable for high concentration, high viscosity, containing insoluble solids such as food, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling and other sectors of the low temperature concentration.
金彩汇System Composition：
Heater of each effect, the separator, condenser, circulating pump, pump between effects, vacuum pump and water drainage system, steam distribution cylinder, operation platform, electric instrument control cabinet and valves, piping system.
金彩汇Performance Characteristics：
金彩汇1. Beautiful appearance, reasonable design of a full set of system, stable operation, high efficiency and energy saving, low steam consumption.
金彩汇2. Concentration ratio high, forced circulation type, make high viscosity liquid to easy flow for evaporation, short time of concentration.
3. Special design through simple operation can be switched to change effect, in order to adapt to the production of different products.
4. Low evaporation temperature, heat is fully utilized, the liquidmaterial is heated gently, suitable for heat-sensitive materials concentration.
5. Through forced circulation in evaporator, heating evenly in the pipe, high heat transfer coefficient, which can prevent the "dry wall" phenomenon.
金彩汇6. Liquid be separated once again after enters the separator, strengthen the separation effect; make the whole device has a wide operating elasticity.
7. The whole device has compact structure, small occupation area, simple structure and smooth, represent large sets of evaporation ecquipment development direction.
金彩汇8. Continuous feeding, feed ligquid level and the required concentration can be controlled.
9. Evaporation: according to the customer need to design.
