分体式全自动CIP系统Split type full-auto CIP cleaning system

全自动CIP清洗时指设备（罐体、管道、泵、阀门等）及整个生产线在无需人工拆开的前提下，在闭合的回路中进行循环清洗。

The operating principle of the full auto CIP cleaning system means that the tank body，pipelines，pumps and all valves and also the whole processing line are cleaned on line no need to disconnect the pipes or the equipments，all cleanings are done in the closed circuit.

系统控制参数：

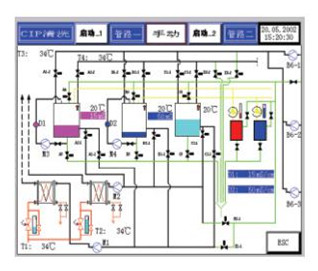

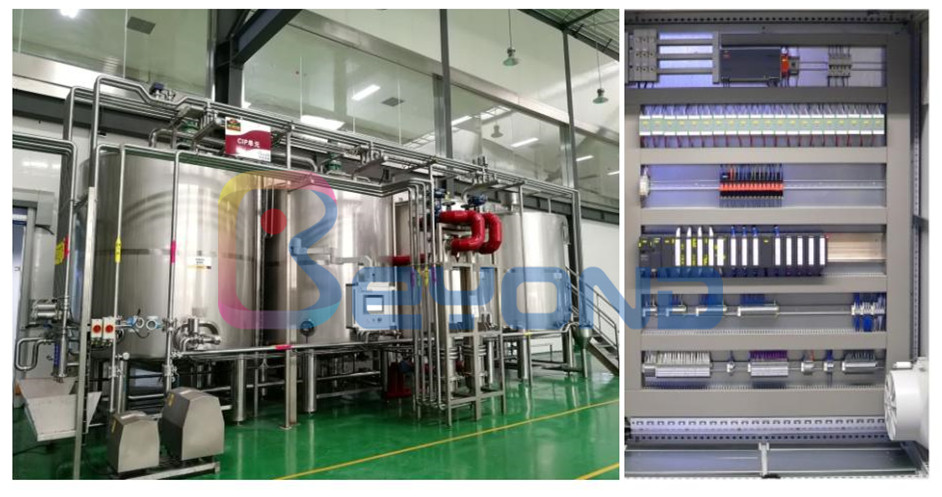

金彩汇本系统采用PLC编程控制，带彩色触摸屏操作显示整个生产工艺流程及各项控制参数，清洗液温度可设定，对罐内酸碱度可设定，对清洗时间可设定，清洗顺序可设定，清洗回流酸碱度可设定，配备系统故障报警装置。

Technical parameter:

金彩汇This system adopts the PLC program to control，with the colored touch--screen to operate and display the whole process flow and also the each controlling parameter.The temperature of the cleaning liquid can be set.

金彩汇It can set the PH value，the cleaning time，cleaning sequence，and also the refluence PH value.With the system malfunction alarm device.

系统工作原理：

金彩汇1.清洗液流量自动控制

2.清洗液温度自动控制

3.罐内液位自动补偿控制

4.罐内酸、碱液的浓度自动补偿

5.酸液、碱液、热水的换相自控操作

6.系统报警装置

The operating principle of the system：

1.Auto-flow control for the cleaning solution

2.Automaticaly reglulate thetemperature of the cleaning liquid.

3.Auto-compensate for the inside tank liquid level.

金彩汇4.Automatically-compensation for the acid and alkali concentration.

5.Auto transfer from one cleaning liquid to another.

6.System auto alarm-device

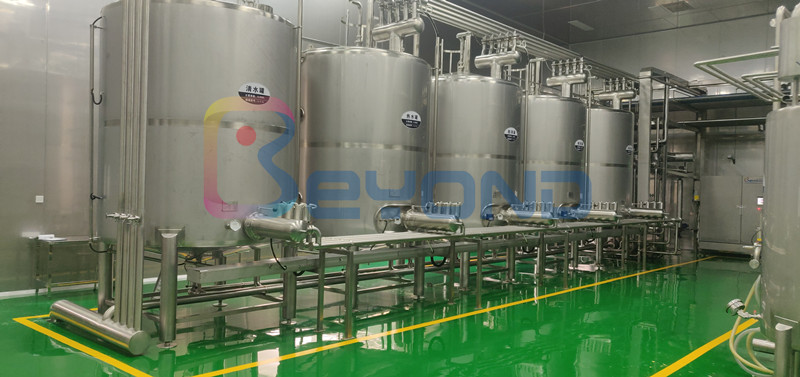

系统的主要设备包括：

金彩汇CIP清洗液贮罐（酸罐，碱罐，热水罐，清水罐）；

金彩汇CIP cleaning liquid storage tanks（include acid tank，alkali tank，hot water tank，clear water tank）；

金彩汇两个浓酸/碱单层贮罐；Two not big storage single layer tanks for concentrated acid and alkali；

CIP进程泵和CIP回程泵；CIP forward and retum pumps；

金彩汇二个浓酸（碱）液隔膜泵；Two diaphragm pumps for acid/alkali concentrate；

金彩汇换热器（板式、管式）；Heat exchanger（plate or tubular type）；

一个电器控制箱；One electrical appliance box；

一组控制管阀件；One set of controlling pipe and valve component；

金彩汇一套自动执行元器件及电器材料；One set of auto-performance componentsand parts and the electrical appliance material；

金彩汇CIP清洗液储罐：1000L-10000L；CIP cleaning liquid storage tank：1000L-10000L；

根据客户需要，可以将系统制作成双回路、三回路、四回路等，可以同时多个清洗回路同时进行。

According to the customer's requirements，we can make the double circuit，three circuit，four circuit and so on，meanwhile we can make multi circuit operating at the same time.

金彩汇加热方式可以为：板片式、盘管式、列管式。The Heating way:plate type，coil tube type，tubular type.
